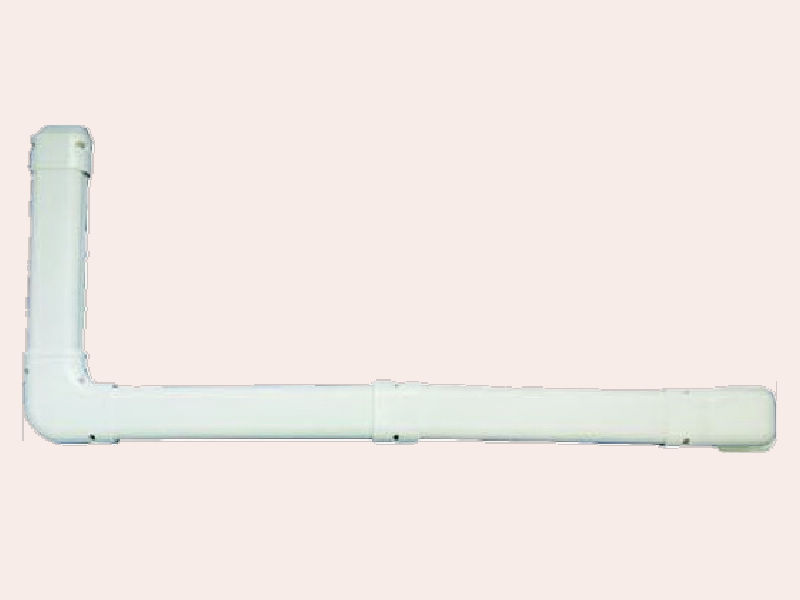

PVC material, UV protection, for 1-5HP (7000-45000BUT) ACR piping or other suited piping. Choose the parts and W22 length according to needs!  The actual use is according to the size of piping!

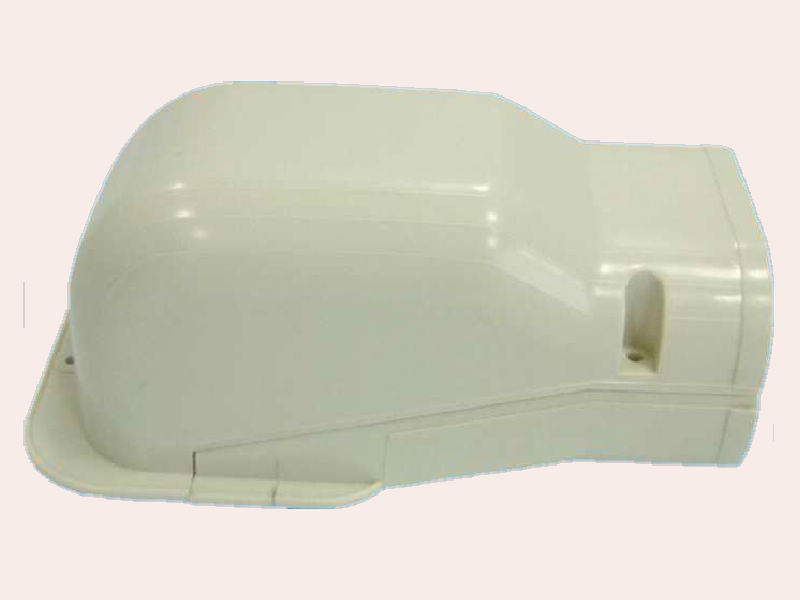

W21 WALL COVER (A: 180, B: 100, C: 78, D: 85, E: 64, mm)

W22 STRAIGHT DUCT (A: 1000, B: 58, C:83, mm. A can bu adjusted.)

W23 LEVEL BEND (A: 132.5, B: 132.5, C: 66, mm)

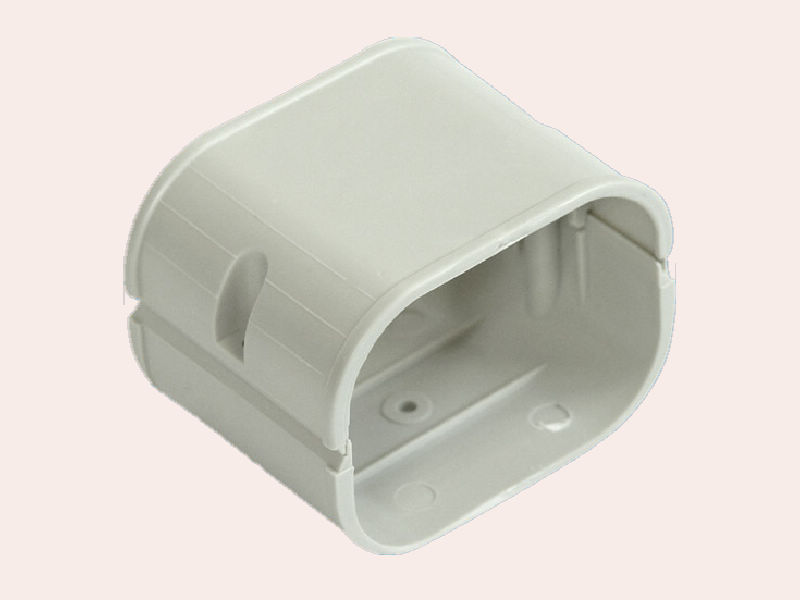

W24 STRAIGHT DUCT CONNECTOR (A: 66, B: 86, C: 65, mm)

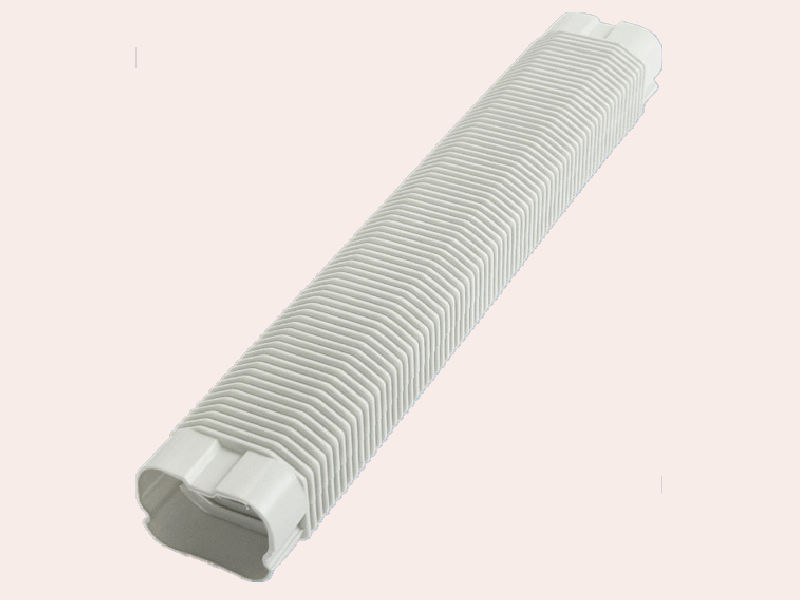

W25 FLEXIBLE DUCT (A: 500, B:77, C: 58, mm)

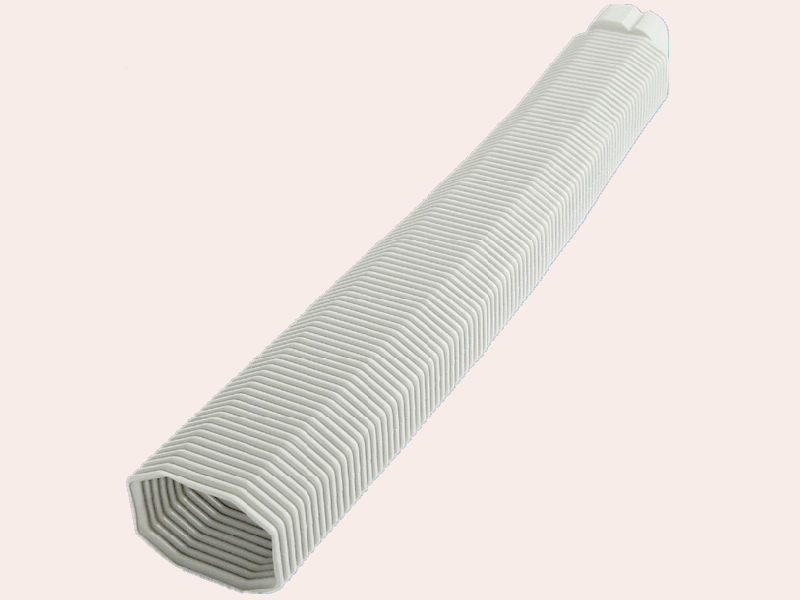

W26 BELL-MOUTH FLEXIBLE DUCT (A: 610, B: 95.5, C: 69, D: 57.5, E: 76, mm)

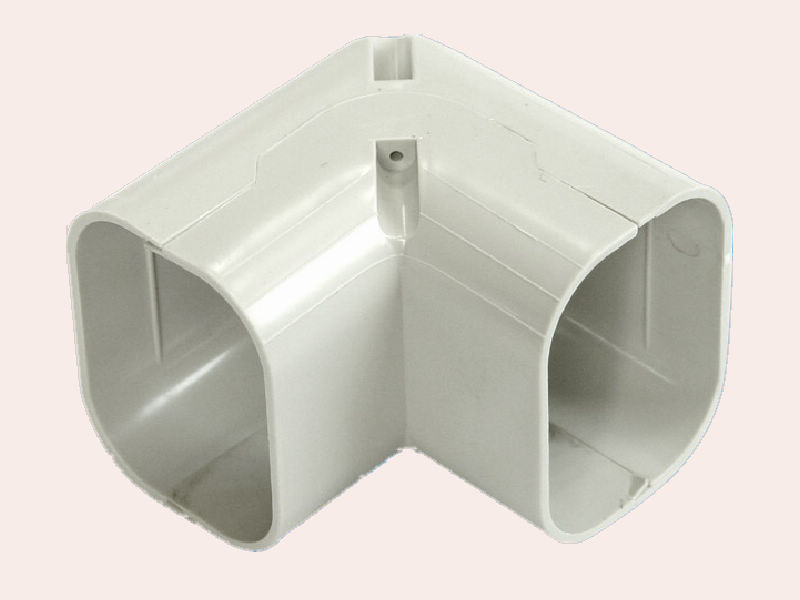

W27 UPRIGHT BEND (A: 107, B: 107, C: 85.5, mm)

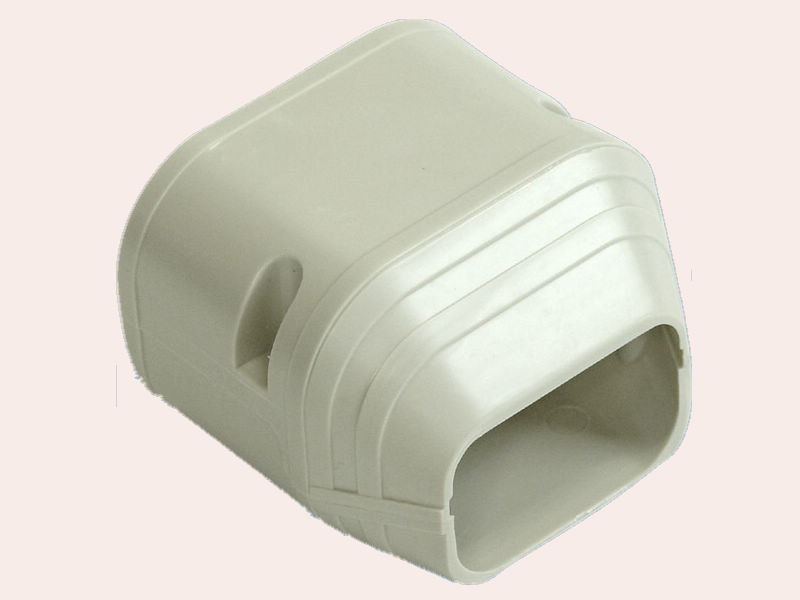

W28 DUCT END (A: 75, B: 87.5, C: 64, D: 61, E: 39, mm)
